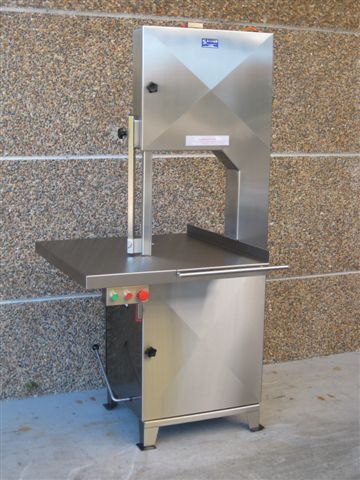

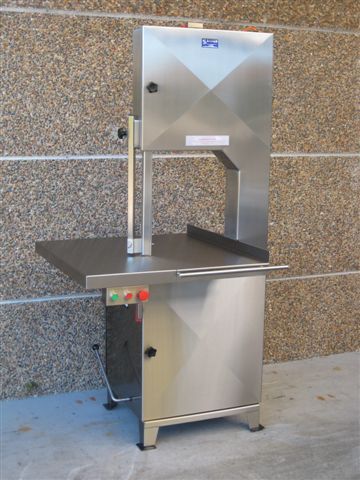

MACHINERY BARNES MK 1 S/S BANDSAW

Stock Code:
M01
Login to Shop Online

Description

MOTOR : 1.5 kw Brake Motor 415v, 3 phase

ELECTRICAL : 24v switching control. 3 switches - 1 push to start

CONTROLS : 1 push to stop, 1 emergency latch-in stop button

CAPACITY : Cutting clearance 405mm high x 435mm wide

CUTTING TABLE : One piece 825mm x 865mm heavy duty 2.5mm stainless steel

BLADE SPEED : 1070 m/min (3500 ft /minute)

SAW BLADE : 13mm wide 3600 mm long

BLADE TENSION : Fully automatic

WEIGHT : 240 kg

DIMENSIONS : Height 1945mm

FLOOR AREA : 990mm x 890mm

WHEELS : Balanced, Corrosion Resistant aluminium wheels

CONSTRUCTION : Full 304 food grade stainless steel, smooth grain finish


BLADE GUIDES AND SCRAPPERS

  • Blade guide is tin plated steel with built in Tungsten Carbide back up
  • Blade cleaners are easily removed with the use of a small ring spanner

SAFETY FEATURES

  • Upper and lower pulleys (wheels) are completely enclosed but readily accessible
  • Blade is guarded above and below the cutting zone. Wrap around top blade guard
  • Fail safe door interlocks to AS4024.1 ensure the machine will not operate with the doors open
  • Machine ceases operation within approximately 1.5 seconds of the power being turned off.
